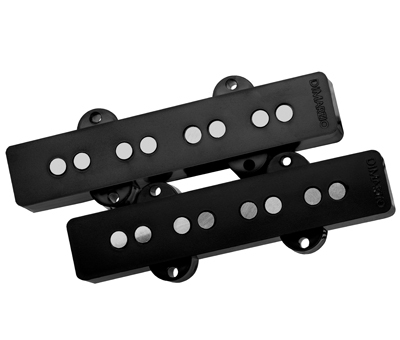

Ultra JazzTM DP149
DiMarzio's new Ultra Jazz pickup is just what its name implies: more of everything you want from a Jazz Bass replacement pickup.....lots more. It's fat, it's funky, it's big, and it's humcancelling. The Ultra Jazz is available individually in neck and bridge models, and as a matched set.
: Recommended For
All positions. The neck pickup alone is the DP147. The Bridge pickup is the DP148, and the pair is DP149.
Tech Talk:
The appearance of the Ultra Jazz is traditional, but the wide dynamic range and frequency response of the hybrid magnetic structure allows both vintage and modern sounds. As with the Model J, humcancelling is achieved with each coil sensing a pair of strings, rather than a stacked design; even with a relatively high DC resistance figure, the Ultra has very strong, percussive highs and clean lows.
Specifications:
Wiring Standard four conductor
Magnet Alnico 5 and Ceramic
Output 250 mV
DC Resistance 12.30K
Year of introduction 1996
Patent #
