כרטיס קול Antelope Audio Discrete 8 Pro Synergy Core

כרטיס קול Antelope Audio Discrete 8 Pro Synergy Core

Name: כרטיס קול Antelope Audio Discrete 8 Pro Synergy Core
Brand: Antelope Audio
Price: 7248.0 ILS
Availability: InStock

853744004953

070-Discrete 8 Pro S

תוספות ושדרוגים

מלאי

מחיר: 7,248 ₪

קנה עכשיו

משלוח לנקודת חלוקה גודל חבילה מקסימלי 40/30/30 ס"מ 8 ק"ג: 20 ₪

זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי

למה לקוחות קונים אצלנו:

זמן אספקה: עד 4 ימי עסקים
קניה מאובטחת ושירות לקוחות מעולה

קניה בטוחה

שאל אותנו על מוצר זה

מידע נוסף

Built to perform

The Discrete 8 Pro is the new generation of a modern classic. The 1U rack audio interface packs industry-leading sound quality, transparent preamps, extensive connectivity and the powerful Synergy Core effects platform.

This versatile interface embodies a zero-compromise approach to hardware – made readily accessible via its redesigned software control panel.

What's new?

Advanced virtual routing patch-bay.

Ultra-low latency Thunderbolt 3 connection.

Enhanced FX processing capabilities.

Latest generation A/D converters.

VIRTUAL PATCH-BAY

Remove complexity, add creativity

The Discrete 8 Pro allows connection between any signal source and any destination for turning any session scenario into reality. Yes, seriously: every analog or digital output, effect strip or DAW track can receive any of the analog or digital inputs, effect returns, computer source channels or the four stereo mixes. All this flexibility is accessible via the full virtual patch-bay or the simplified routing view of the original Discrete interfaces – the choice is yours.

Explore all avenues

with 26 inputs & 32 outputs

The generous number of preamps, analog and digital I/O support a wealth of applications: voice work, multi-synth setups, live recordings of small ensembles and even close-miked drum kits. And with both USB and Thunderbolt 3 connectivity, the interface achieves cutting-edge performance and easy integration with any setup.

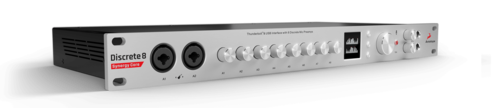

1 Mic/Combo Inputs A1 – A2 – (XLR, LINE, HI-Z)

2 Input Gain Knobs A1- A8

3 IPS Display Screen

4 Function Buttons

5 Main Rotary Control

6 Talkback button & Built-In microphone input

7 Headphone volume adjustment knobs H1 – H2

8 Headphone outputs H1 – H2

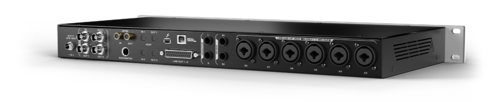

D8 PRO Scheme back

1 18V/20W Power Input

2 Word Clock I/O (1x W.C. in – 3x W.C. Outs)

3 Footswitch Input

4 2x S/PDIF Ports – 2 channels of I/O (Up to 24-bit, 192kHz)

5 4 x ADAT Ports – 16 channels of I/O (up to 24-bit, 48kHz – I/O reduced at higher sample rate)

6 Thunderbolt 3 Port – 32 channels of I/O (Up to 24- bit, 192kHz)

7 USB 2 Port – 24 channels of I/O (Up to 24-bit, 192kHz)

8 D’Sub 25 Line Outputs – 8 channels (Up to 24-bit, 192kHz,)

9 Main Monitor Output (1/4″ TRS ballanced ,DC-Coupled)

10 Re-amp outputs R-1, R-2 – (Instrument outputs) Alternative Speaker Output

11 Mic/Line Inputs A3 – A8 XLR/LINE

SOUND QUALITY

Record and monitor with uncompromising sound detail

The A-D/D-A converters and clocking are at the heart of every studio. The Discrete 8 Pro has been upgraded with latest generation converters (up to 130dB of headroom), while keeping the 64-bit AFC™ clocking technology established by our industry-standard master clocks. With the interface in your rack, you can experience a new level of detail in your recordings and enjoy wider soundstage for an exceptional stereo image in audio playback.

MICROPHONE PREAMPS

Console-grade,

times eight

The Discrete 8 Pro packs eight discrete Class-A microphone preamps, formed of six transistors each and based on circuits found in classic recording consoles. The proof is in the clarity, depth and ultra-low noise floor, with up to 65 dB of gain to satisfy even the hungriest mics.

All eight inputs accept XLR as well as line-level TS/TRS jacks, and the two front panel inputs can even be switched to Hi-Z instrument inputs.

EFFECTS PROCESSING

Stack up your processing

chain and send to any output

Our unique Synergy Core platform gives you access to hardware-based analog-modeled outboard recreations. Running on a hybrid system of one FPGA and two DSP chips, you can monitor, record and mix using an ever-expanding library of low-latency processors. Even at the highest sample rate, the Discrete 8 Pro supports the full number of effects, simultaneously.
