68 KHZ HD MASTER CLOCK

The perfect solution for mastering, recording and project studios, film-scoring, post-production and live sound

For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world.

This legacy now continues with the newest master clock by Antelope Audio – Isochrone OCX HD.



OCX HD FEATURES



64-BIT ACOUSTICALLY FOCUSED CLOCKING

Antelope Audio game-changing 4th gen ACF jitter management algorithm



768 KHZ CLOCKING

OCX HD can output five different sample rates



GREATER CONNECTIVITY

AES/EBU, S/PDIF clocking outs up to 192kHz, video in on BNC and Atomic clock Input



OCX HD HIGHLIGHTS



DESCRIPTION



THE NEW STANDARD IN CLOCKING

OCX HD and the vast choice of clocking options it offers studio professionals make it the most versatile audio clock on the market

OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.


circle round img ocx hd2 1


fullwidth img ocx hd 3 1



VIDEO CLOCKING

All that you love about Antelope’s cult Trinity Master Clock now in just 1U

Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope’s newest Atomic Clock – 10MX.


circle round img ocx hd1 1


fullwidth img ocx hd 2 1


circle round img ocx hd3 1


ADVANCED CONTROL

Access all OCX HD features via Antelope Audio’s flexible software control panel

Antelope’s latest master clock benefits from flexible firmware update functionality, as featured in all new-generation Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows.

The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.



drag me 4 1

conectivity ocx hd front 1conectivity ocx hd back 1




CONNECTIVITY


 ocx hd front 1 1

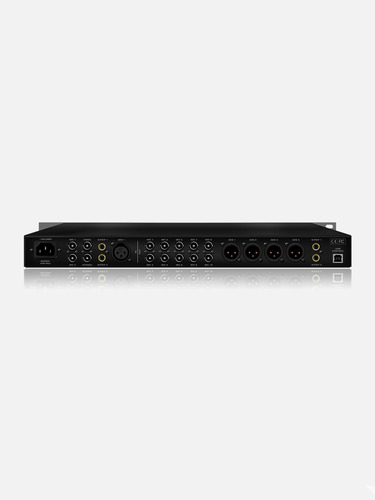

ocx hd back 1 1



SPECIFICATIONS




    • Sample Rates Generated

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz

    • Master Clock Outputs

10x Word Clock Outputs up to 768kHz

4x AES/EBU Outputs up to 192kHz

2x S/PDIF Outputs up to 192kHz

    • Inputs

2x Word Clock Inputs up to 768kHz

1x Video Input accepting wide range of SD and HD video signals

1x Atomic Input

2x S/PDIF Inputs up to 192kHz

1x AES/EBU Input up to 192kHz

1x USB Input for control



    • Humidity

30 – 80% RH non-condensing

    • Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator

    • Clock Calibration

< +/-0.001 ppm

    • Clock Stability

<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F

    • Clock Aging

< 1 ppm per year



    • Atomic Clock Input

1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC

    • Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)

    • Operating Temperature

0 – 50°C, 32-122°F

    • Weight

2.65 kg/5.84 lb

    • Dimensions

482.6 (W) х 230 (D) х 44 (H) mm

19 (W) x 9.05 (D) x 1.75 (H) inch

    • Power Supply

AC Universal Input ~95-245V, 20 Watts Max
