FISHMAN AFX Pocket Blender Mini A/B/Y + DI

605609179531
071-PRO-AFX-DI2

תוספות ושדרוגים


מלאי
מחיר: 487 ₪
משלוח לנקודת חלוקה גודל חבילה מקסימלי 40/30/30 ס"מ 8 ק"ג: 20 ₪
זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 4 ימי עסקים
  • קניה מאובטחת ושירות לקוחות מעולה
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

AFX POCKET BLENDER MINI A/B/Y + DI ACOUSTIC GUITAR PEDAL

  • Balanced D.I. Output with Ground Lift

  • Innovative Dual Path Routing

  • Super Compact Design Fits Almost Anywhere

  • 9V External Power Required (sold separately)

ALL THE ESSENTIAL TOOLS IN ONE COMPACT PEDAL

A level-adjustable A/B pedal. A built-in DI output with ground-lift. A boost pedal. An output Y-splitter. A two-channel mixer. The AFX Pocket Blender is the ultimateA/B/Y pedal combining four essential tools:

  1. an Input Mixer that lets you continuously adjust the level of audio source(s) connected to the TRS input
  2. a D.I. output featuring Fishman’s balanced line driver circuit that can be used to send to a house PA or amplifier
  3. an ABY output to split a signal or connect to one or two stage amps
  4. an A/B Mode switch determines the overall behavior when the footswitch is pressed
Fishman AFX Pocket Blender acoustic guitar pedal on the ground over a guitar.

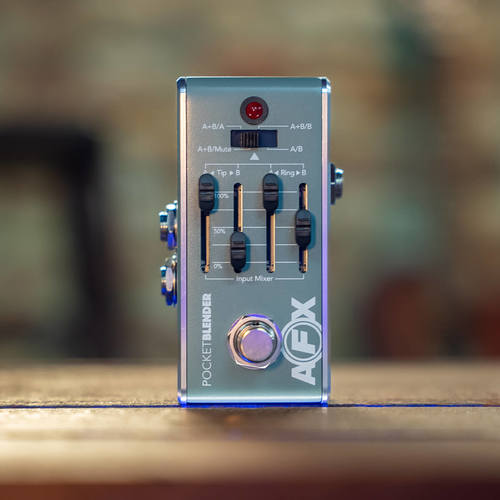

Fishman AFX Pocket Blender acoustic guitar pedal standing front.

THIS IS THE CLASSIC POCKET BLENDER IN A SMALL FOOTPRINT.

Without even touching the A/B features, it’s a mini two-channel mixer allowing you to connect two audio sources and blend them together. This is perfect for dual-source systems such as Fishman soundhole pickups that feature a mic or body pickup.

Build on the simple blender by setting up an “A mix” and a “B mix” where pressing the footswitch toggles between one mix and the other. You could balance your onboard pickup (50%) with your onboard mic (50%) on mix A. Then on mix B, which you use to take solos, you could boost the pickup to 75% while leaving the mic on 50%. All with a single stomp of the footswitch.

And it’s not only an A/B pedal with a mixer, it is the heart of Fishman’s unique AFX Dual Path ecosystem. By using common TRS audio cables, you assign effects on either tip or ring signal paths and essentially switch between two ‘scenes,’ each with mix levels you control.

POCKET BLENDER USER GUIDE

DUAL PATH

 All AFX Minis are compatible with standard guitar instrument cables. They also feature an innovative dual channel audio path that lets you create two independent effect chains with a single series of cables.

LEARN MORE

DC POWER

 In order to pack a lot of functionality into the smallest stompbox size we could find, AFX Minis require external power. Be sure to use a Fishman 910-R(120VAC) or 910-U(230VAC) power adapter to ensure the above specs.

 FOOTSWITCH

Pressing the footswitch toggles between mix A, mix B, or mute, as determined by the A/B Mode switch described below. In order to offer you a fully-analog product, an A/B LED status was not possible. This is the same as other passive A/B pedals, so the LED only indicates the pedal is receiving proper power.

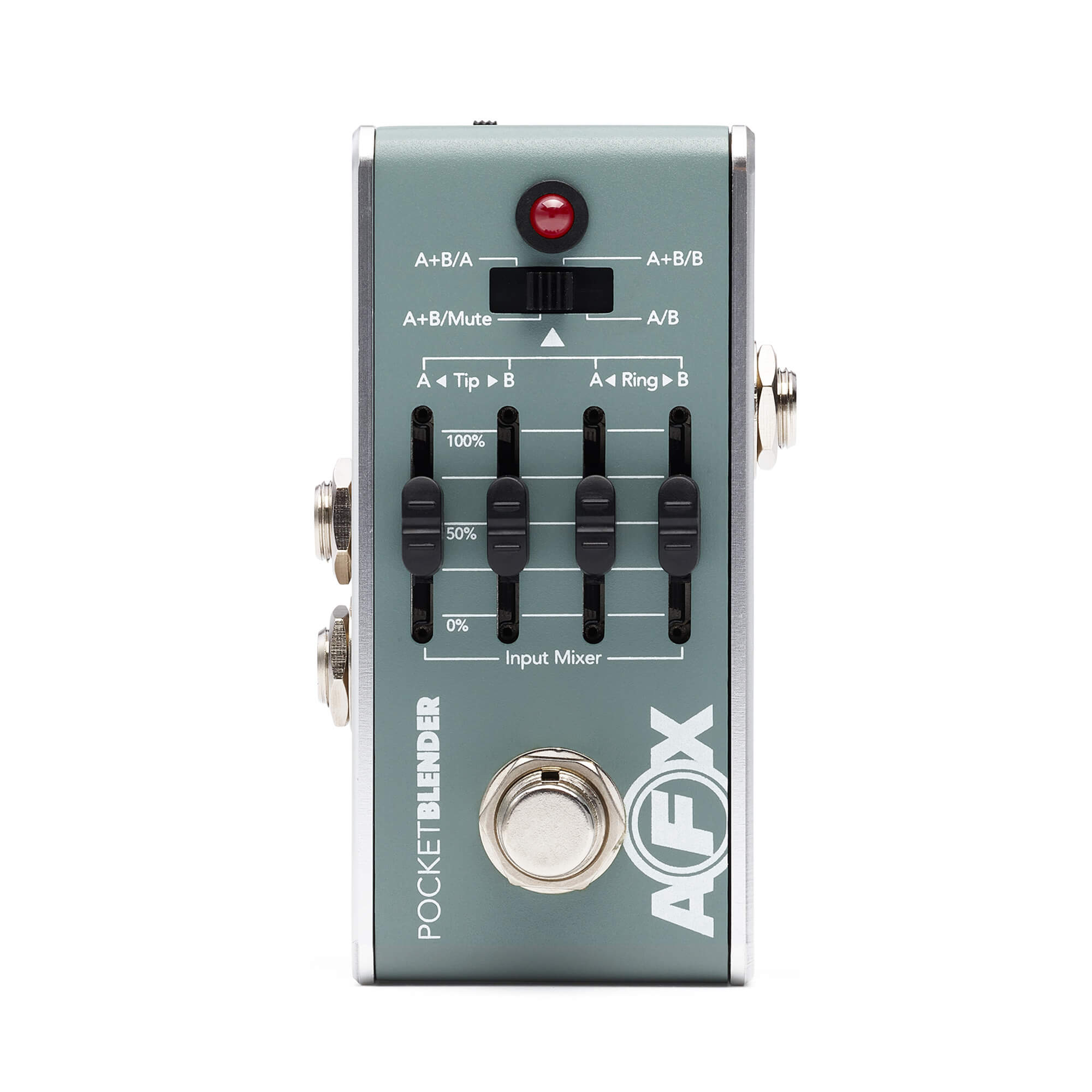

INPUT MIXER

 There are 4 input faders that let you setup 2 mixes, one for A and one for B. When you press the footswitch, you toggle these mixes which are sent to the outputs. How these levels are mixed and routed is ultimately determined by the A/B Modes switch that sits directly above the mix faders.

LEARN MORE

Learn more about A/B Mode Switch

A/B MODE SWITCH

 Pressing the footswitch toggle between the mix you set above for A and B, but there’s a twist. With the A/B Modes switch, you can choose to mix these signals in a variety of ways.

 LEARN MORE

Learn more about ABY and D.I. Outputs

ABY AND D.I. OUTPUTS

Unlike other pedals in the AFX family, the AFX Pocket Blender does not exclusively process effects on either the tip or ring signals. Instead, it is your master controller for selecting, mixing, and outputting these tip and ring signals. For this reason, we have provided two independent outputs to help you easily manage your audio path needs.

LEARN MORE

GROUND LIFT SWITCH

 A tiny switch on the front of the pedal is designed to electrically isolate the pedal from other electronic devices. Normally, leave this switch set to Ground. Should a ground hum occur, set this switch to Lift.

Learn more about Mixer Examples

MIXER EXAMPLES

See a few examples showing how the AFX Pocket Blender combines signals.

MODEL NUMBER

PRO-AFX-DI2

AUDIO I/O

1/4" TRS input and outputs, 1/4" balanced DI output with ground lift

DSP

N/A (all analog)

DIMENSIONS

1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)

MATERIAL

Durable aluminum enclosure

CURRENT DRAW

53mA, typical

POWER

910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
