פרה אמפ אקולייזר FISHMAN AFX Pro EQ Mini Acoustic Preamp & EQ

605609157423
071-PRO-AFX-EQ2

תוספות ושדרוגים


מלאי
מחיר: 649 ₪
משלוח לנקודת חלוקה גודל חבילה מקסימלי 40/30/30 ס"מ 8 ק"ג: 20 ₪
זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 4 ימי עסקים
  • קניה מאובטחת ושירות לקוחות מעולה
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

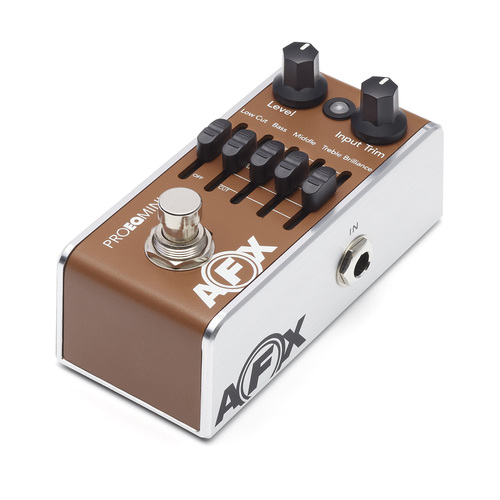

Fishman AFX Pro EQ mini acoustic guitar preamp and EQ pedal angled.

AFX PRO EQ MINI ACOUSTIC PREAMP & EQ ACOUSTIC GUITAR PEDAL

  • 5-Band EQ Specially Voiced for Acoustic Instruments

  • True Bypass with Options for Buffered Bypass or Mute

  • Feedback-Fighting Phase Control

  • Innovative Dual Path Routing

  • Super Compact Design Fits Almost Anywhere

  • 9V External Power Required (sold separately)

PERFECT ACOUSTIC EQ CONTROL IN ONE COMPACT PEDAL



Based on the highly-regarded Fishman Platinum series of instrument preamps, AFX Pro EQ Mini offers quality preamplification and critical equalization voiced specifically for acoustic instruments.

Fishman AFX Pro EQ mini acoustic guitar preamp and EQ pedal on the ground beside the guitar.

HIGH QUALITY PREAMP & EQ FOR PASSIVE AND ACTIVE INSTRUMENTS!

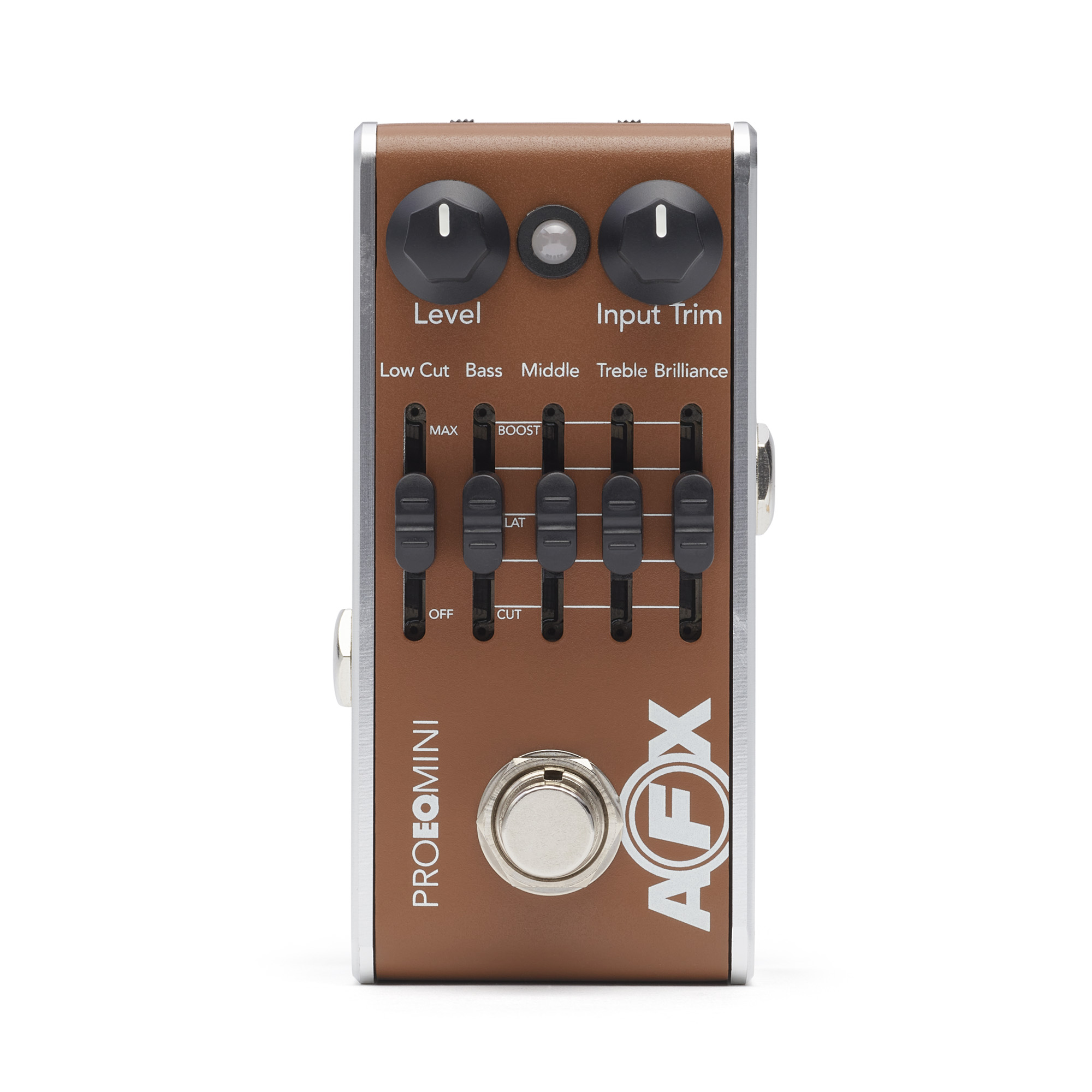

Fishman AFX Pro EQ mini acoustic guitar preamp and EQ pedal standing front.

This is no off-the-shelf graphic EQ – plug in and your signal begins with a high-impedance instrument preamp to condition nearly any passive or active pickup.

Then, use the four bands of acoustic tone control
to sculpt your bass, mids, treble, and brilliance. A sweepable Low Cut fine-tunes the very low frequencies to reduce or enhance thumps and subs.

Finally, hold the footswitch to toggle your output polarity. Also known as “phase,” this simple circuit can tame low-frequency howl very effectively.



PRO EQ MINI USER GUIDE

AUDIO PATH SWITCH

AFX Minis allow you to choose the audio path on which a particular effect will be processed. You do this by flipping the Audio Path switch on the front of the pedal.

TRUE BYPASS

With true bypass, the pedal’s electronics are literally removed from the signal chain. For those who prefer a buffered bypass, AFX Mini effect pedals are switchable.

LEARN MORE

DC POWER


In order to pack a lot of functionality into the smallest stompbox size we could find, AFX Minis require external power. Be sure to use a Fishman 910-R(120VAC) or 910-U(230VAC) power adapter to ensure the above specs.

FOOTSWITCH MUTE

Like other AFX Minis, press the footswitch to bypass the effect. AFX Pro EQ Mini also lets you choose to mute your audio instead of bypass. Hold the footswitch while applying power and the LED will flash to indicate the mode has changed.

SETTING LEVELS

Unlike conventional guitar stompboxes, AFX Pro EQ Mini features an analog preamp that provides up to 20dB of quality gain and impedance matching for most passive, active, and magnetic acoustic instrument pickups.

TONE CONTROLS & EXAMPLES


 Here are some great settings to help you get started with the Pro EQ Mini. These recommendations make dialing in amazing acoustic tone quick, easy and fun!

 LEARN MORE

PHASE INVERT

 Signal polarity – often referred to as Phase – changes the pickups relationship to the sound coming from the amplifier. Inverting Phase can reduce feedback. With low volume playing, it can improve the intensity of low frequencies you hear.

MODEL NUMBER

PRO-AFX-EQ2

AUDIO I/O

1/4" TRS input and output (TRS enables Dual Path Functionality)

DSP

32-bit processing

DIMENSIONS

1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)

MATERIAL

Durable aluminum enclosure

CURRENT DRAW

53mA, typical

POWER

910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative

ANALOG SIGNAL PATH

Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB

DIGITAL SIGNAL PATH

A/D, D/A conversion: 24-bit | Signal processing: 32-bit
