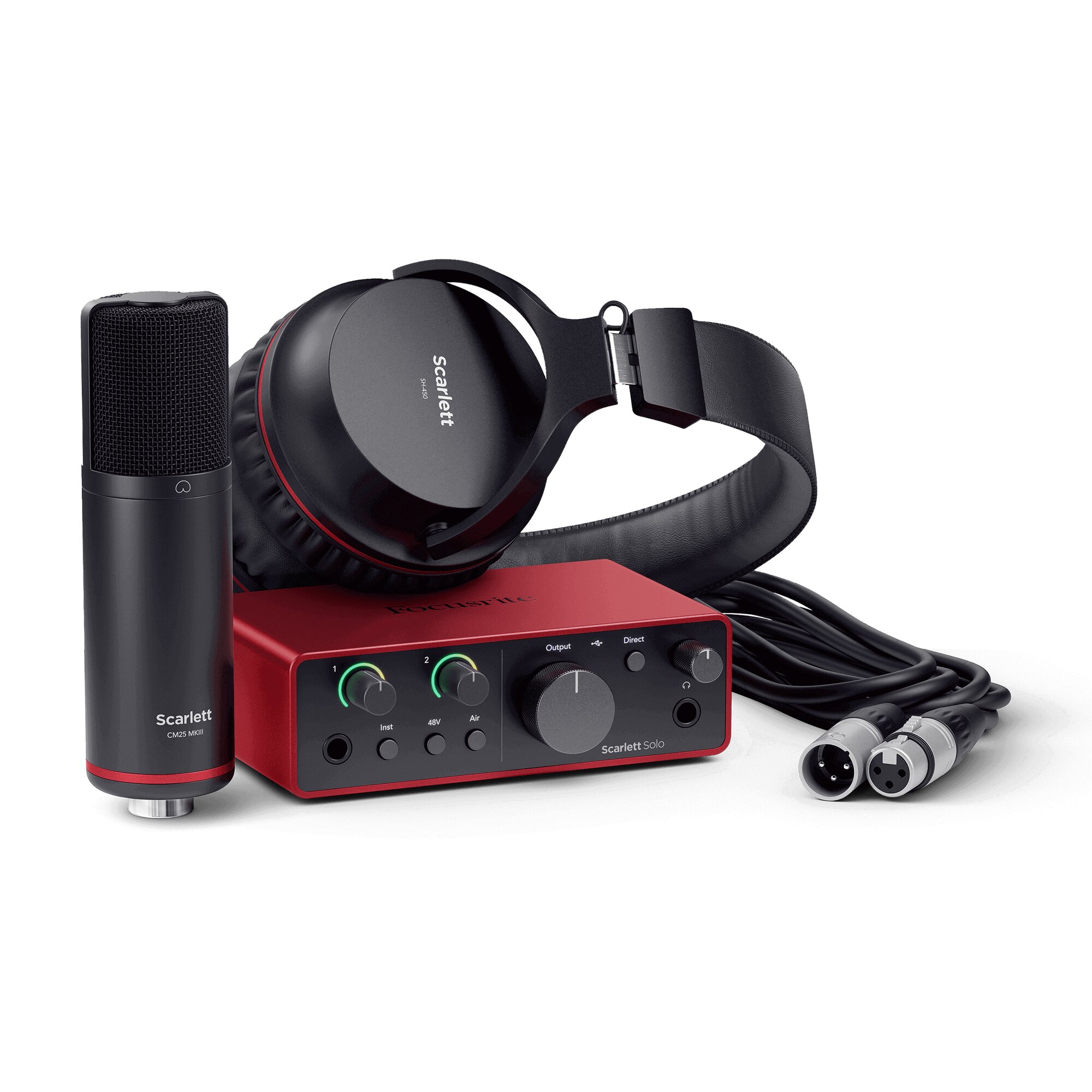

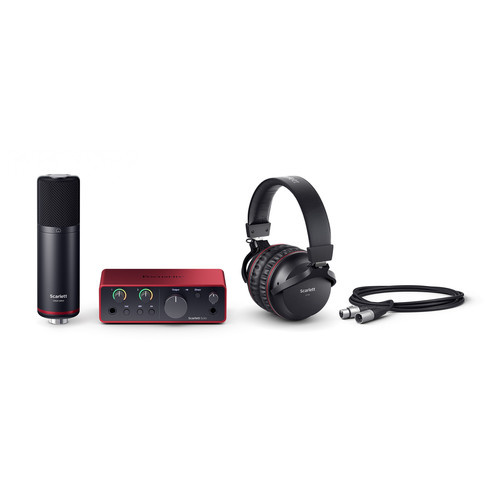

Overview
• Number of Microphone Preamps: 1
• Phantom Power: Yes
• Instrument Inputs: 1
• Line Inputs: 1
• Air Mode: Yes
• Line Outputs: 2
• Headphone Outputs: 1
• Loopback: Yes
• Connectivity: USB Type-C
• Protocol: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 4 × 2 (including Loopback inputs)
• A/D Resolution: 24-bit/192 kHz
• Bus Powered: Yes (900mA)
• Microphone: CM25 MKIII Condenser
• Headphones: SH-450 Closed-back
• XLR Cable: 3m
Supported sample rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
• Frequency Response: 20-20kHz ± 0.06dB
• Dynamic Range: 113dB (A-Weighted)
• THD+N: -100dB @ minimum gain
• Noise EIN: -127dBu (A-Weighted)
• Maximum Input Level: 9.5dBu
• Gain Range: 57dB
• Impedance: 3kΩ
Line inputs
• Frequency Response: 20-20kHz ± 0.05dB
• Dynamic Range: 113dB (A-Weighted)
• THD+N: -100dB @ minimum gain
• Maximum Input Level: 22dBu
• Gain Range: 57dB
• Impedance: 60kΩ
Instrument inputs
• Frequency Response: 20-20kHz ± 0.15dB
• Dynamic Range: 112dB (A-Weighted)
• THD+N: -80dB @ minimum gain
• Maximum Input Level: 12dBu
• Gain Range: 57dB
• Impedance: 1MΩ
Line outputs (Balanced)
• Frequency Response: 20-20kHz ± 0.02dB
• Dynamic Range: 120dB
• THD+N: -109dB
• Maximum Output Level: 16dBu
• Impedance: 200Ω
Headphone outputs
• Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω
• Dynamic Range: 112dB @ 33Ω , 115dB @ 300Ω
• THD+N: -97dB @ 33Ω , -102dB @ 300Ω
• Maximum Output Level: 2.5dBu into 33Ω , 10dBu into 300Ω
• Maximum Output Power: 32mW into 33Ω , 22mW into 300Ω
• Impedance: 50Ω
Analogue to Digital Converter
• THD+N: -110dB
• Dynamic Range: 120dB
Digital to Analogue Converter
• THD+N: -115dB
• Dynamic Range: 130dB (A-Weighted)
Power
• USB: 900mA
