C23-031014

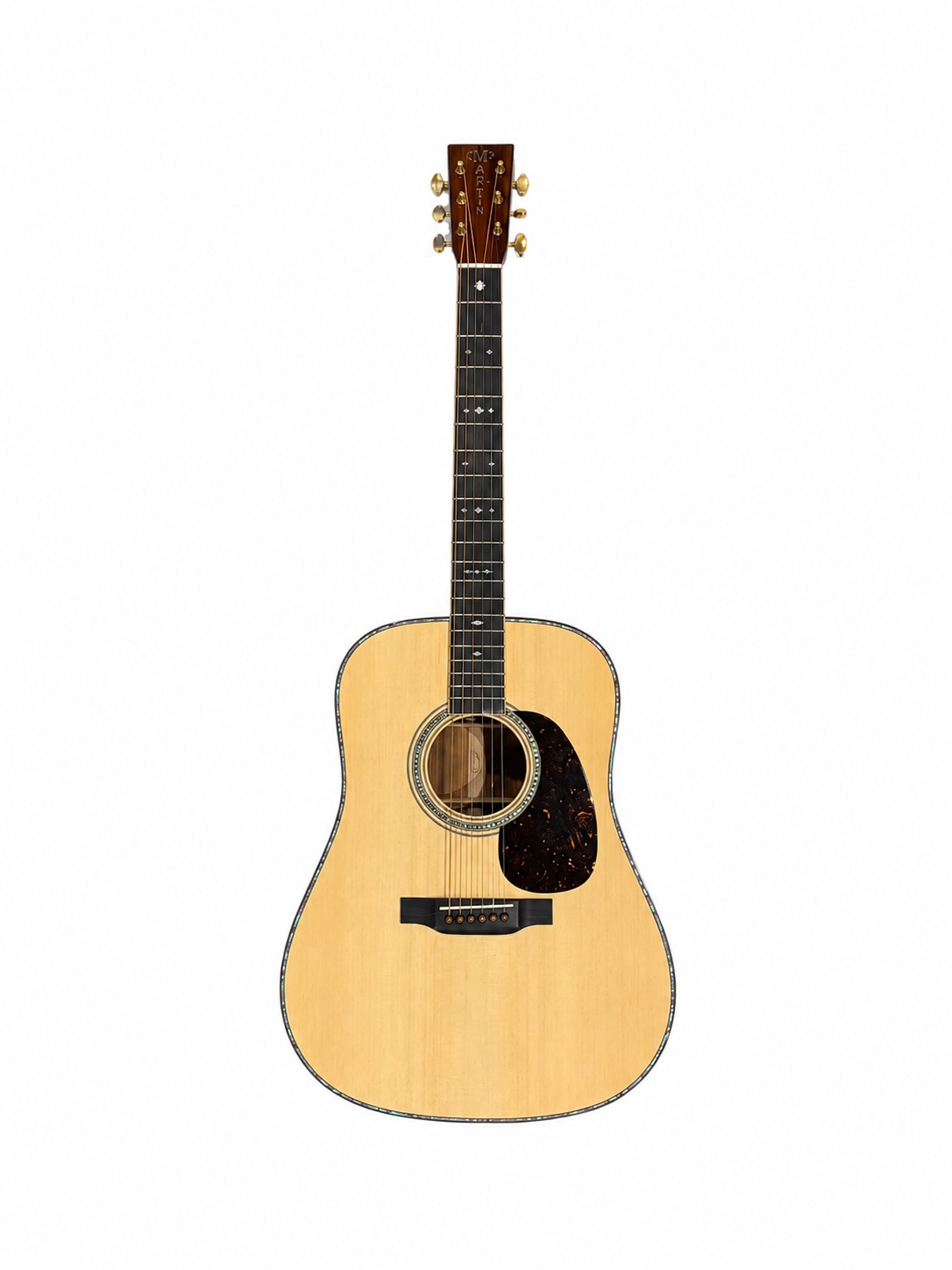

Instrument: Custom ''D'' Dreadnought Body
Orientation: Right Handed
Neck Joint: Dovetail
Appointment Level: Standard
Adhesive: Modern Adhesive
Top Material: Adirondack Spruce
Bracing Material, Top: Adirondack Spruce
Back and Side Material: Highly Flamed Koa
Binding Material: East Indian Rosewood
Top Pearl: Perimeter Only
Rosette Style: Style 45 Black Maple with MOP
Diamonds
Bridge Style: Modern Belly
Neck Material: 12/4 Genuine Mahogany
Neck Profile: Modified Low Oval
Neck Taper: High Performance Taper
Tuning Machines: Grover Gold V97-18GA StaTite 18:1
Vintage Btn
Fingerboard Material: Black Ebony
Fingerboard Inlay: Style 45 Snowflake (Long)
Finish Type: Standard
Finish Package: Gloss Body w/Satin Neck and
Polished Headplate
Top Color: Clear
Electronics: None
Body Depth: Standard
Scale Length: 25.4"
Compensated Scale Length: 25.470"
Neck Joint: Dovetail
Truss Rod: Adjustable 14 Fret
TOP

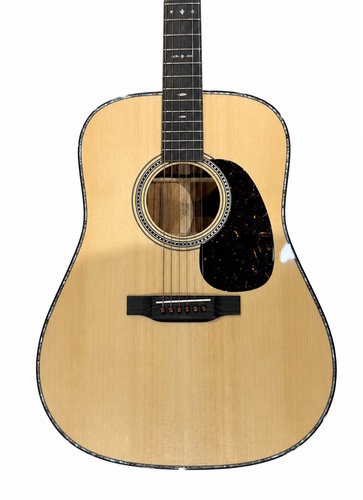

Top Material: Adirondack Spruce
Top Material Upgrade: Premium
Final Top Grade: Grade 8
Top Thickness: Standard
Bracing Material, Top: Adirondack Spruce
Bracing Pattern, Top: X Brace
Bracing Pattern Number, Top: 1-A DOM
Bracing Shape, Top: Scalloped
Bracing Style, Top: Standard
Bracing Size, Top: 5/16''
Binding Material: East Indian Rosewood
Top Pearl: Perimeter Only
Top Pearl Species: Select Abalone
Top Pearl and Thickness: Select Abalone 0.064''
Binding and Body Pearl Note:
Rosette Style: Style 45 Black Maple with MOP Diamonds
Rosette Poly:
Rosette Pearl Species: Mother of Pearl Diamonds
Rosette Pearl Species And Thickness: Mother of Pearl Diamonds 0.100''
Pickguard Material: Faux Tortoise
Pickguard Pattern: Pattern 2B
Rosette and Pickguard Note: Knopfler Style Rosette by Request
BACK AND SIDE
Front Block: BL,Mahogany,Front,D,14,Adj
Rear Block: BL,Mahogany,Rear,D
Back Piece Qty: 2 Piece

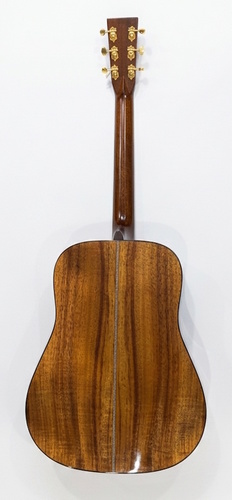

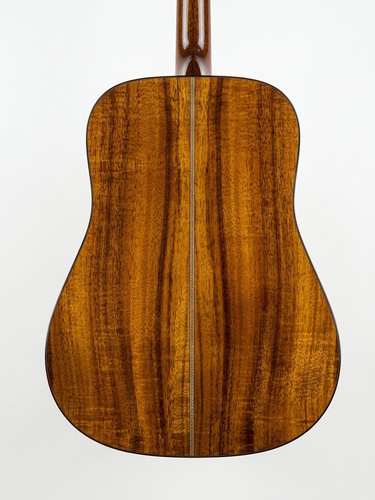

Back and Sides Material: Highly Flamed Koa
Back and Sides Material Upgrade: Premium
Wedge Material Upgrade: Premium
Back Purfling: Style 45 (Mosaic)
Bracing Material, Back and Sides: Spruce
Bracing Pattern: D14 Fret
Center Strip: Spruce
Center Strip Stamp Location: Between 1st & 2nd Brace
Ribbons: Spanish Cedar
Side Strips: East Indian Rosewood
Endpiece Material: East Indian Rosewood
NECK
Neck Material: 12/4 Genuine Mahogany
Neck Profile: Modified Low Oval
Neck Taper: High Performance Taper
Heelcap Material: East Indian Rosewood

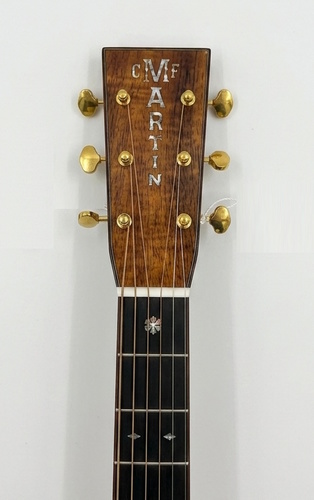

Headstock: Solid
Diamond Volute: Standard
Headstock Taper: Square
Corners: Square
Headplate Material: Highly Flamed Koa
Headplate Material Grade: Premium
Headplate Thickness: Standard
Headplate Binding: Yes
Headplate Inlay: CFM Block
Headplate Inlay Pearl Species: Select Abalone
Stamp: C.F. Martin & Co.
Neck Material, Shape, Headstock Note:
FINGERBOARD
Fingerboard Material: Black Ebony
Fingerboard Material Grade: 3
Fingerboard Oil: Yes
Fingerboard Radius: 16''
Fingerboard Width at Nut: 1 3/4"
Fingerboard Width at 12th Fret: 2 1/8"
String Spacing: 2 5/32''
Fingerboard Length: 17.989''
Fingerboard Thickness: Standard Thickness
Fret Wire: Standard
Fret Slot: 0.023 Through
Total Frets: 20 Total
Fingerboard Binding: Yes
Fingerboard Inlay: Style 45 Snowflake (Long)
Fingerboard Inlay Pearl Species: Select Abalone
Side Dots: White
Side Dot Postion: One at 3rd, 5th, 7th, 9th, Two at 12th, One at 15th & 17th Frets
Nut Material: Bone
Nut Positioning: Flat
FINISH
Finish Type: Standard
Finish Package: Gloss Body w/Satin Neck and Polished Headplate
Satin Finish Package: Not Applicable
Finish Taping Notes: Tape All Bindings, Inlays & Heelcap for Fill
Top Color: Clear
Body Filler: Rosewood
Neck Filler: Rosewood
Neck Stain: Mahogany
Finish and Extras Note:
BRIDGE
Bridge Material: Black Ebony
Bridge Style: Modern Belly
Saddle Style: Drop in Saddle
Saddle Material: Compensated Bone
Bridge Pins: Liquid Metal - Gold with Red Dot
Bridge End Pins: White w/ Faux Tortoise
EXTRAS
Tuning Machines: Grover Gold V97-18GA StaTite 18:1 Vintage Btn
Tuning Machine Drilling: R 11/32''
Strings: Authentic Acoustic Lifespan 2.0
Strings Guage: Medium
Case: 5-Ply Hardshell
Custom Shop Credentials Book: Yes
