FEATURES:
Up to 131 dB Sound Pressure Level
2100W Class-D Bi-Amplification
45-20000 Hz linear frequency response
1.75" Compression Driver
15" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management

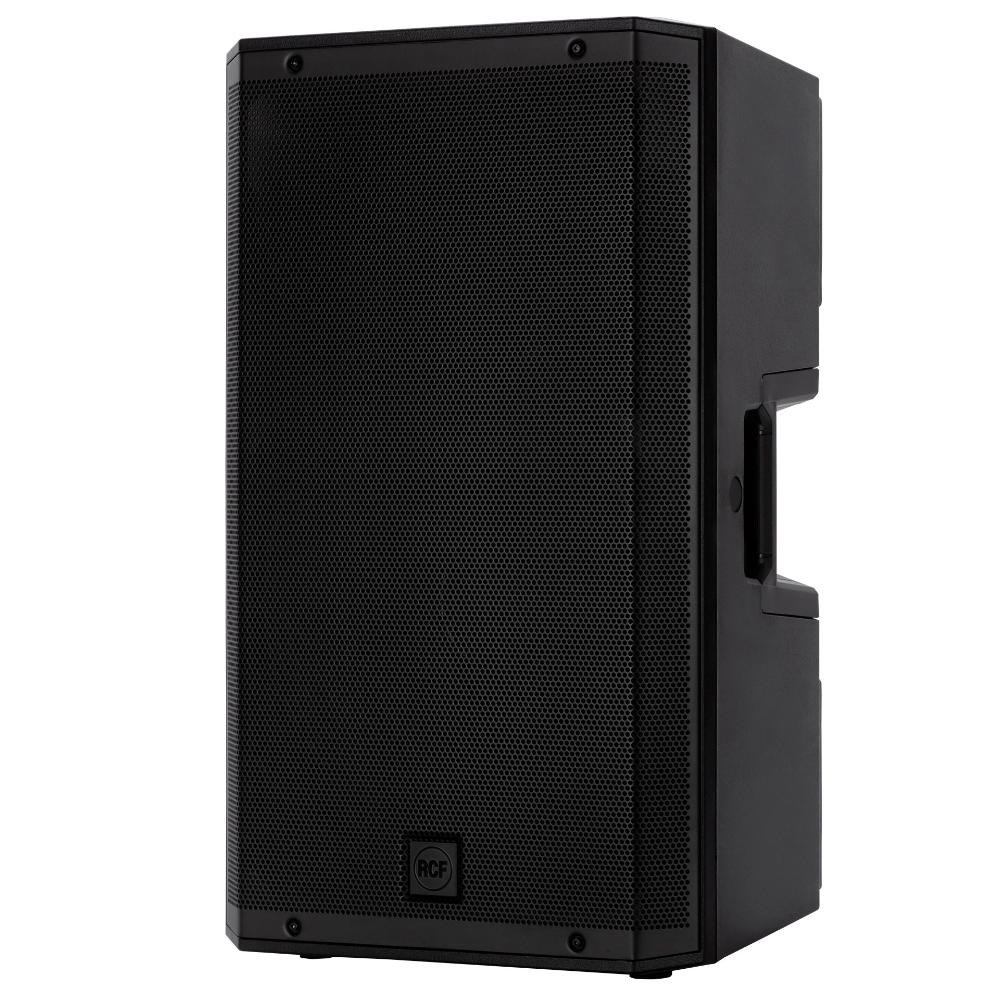

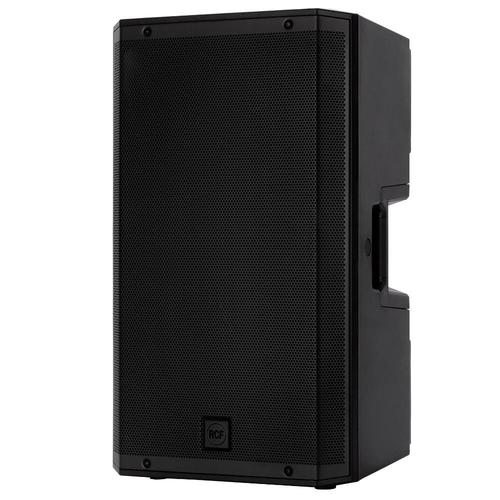

ART 915-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 15" woofer, two-channel 2100W amplifier, and a constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 131 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 60°
TRANSDUCERS
Compression Driver: 1 x 1.0'', 1.75'' v.c
Woofer: 1 x 15'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies: 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter

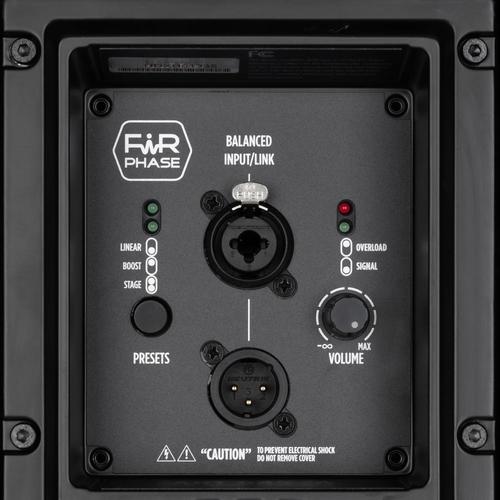

Controls: Linear, Boost, Stage, Volume
POWER SECTION
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
STANDARD COMPLIANCE
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
Hardware: 1 x M10 Top, 1 x M10 each side
Handles: 1 Top , 1 each side
Pole mount/Cap: Yes
Color: Black
SIZE
Height: 717 mm / 28.23 inches
Width: 415 mm / 16.34 inches
Depth: 410 mm / 16.14 inches
Weight: 22 kg / 48.5 lbs
