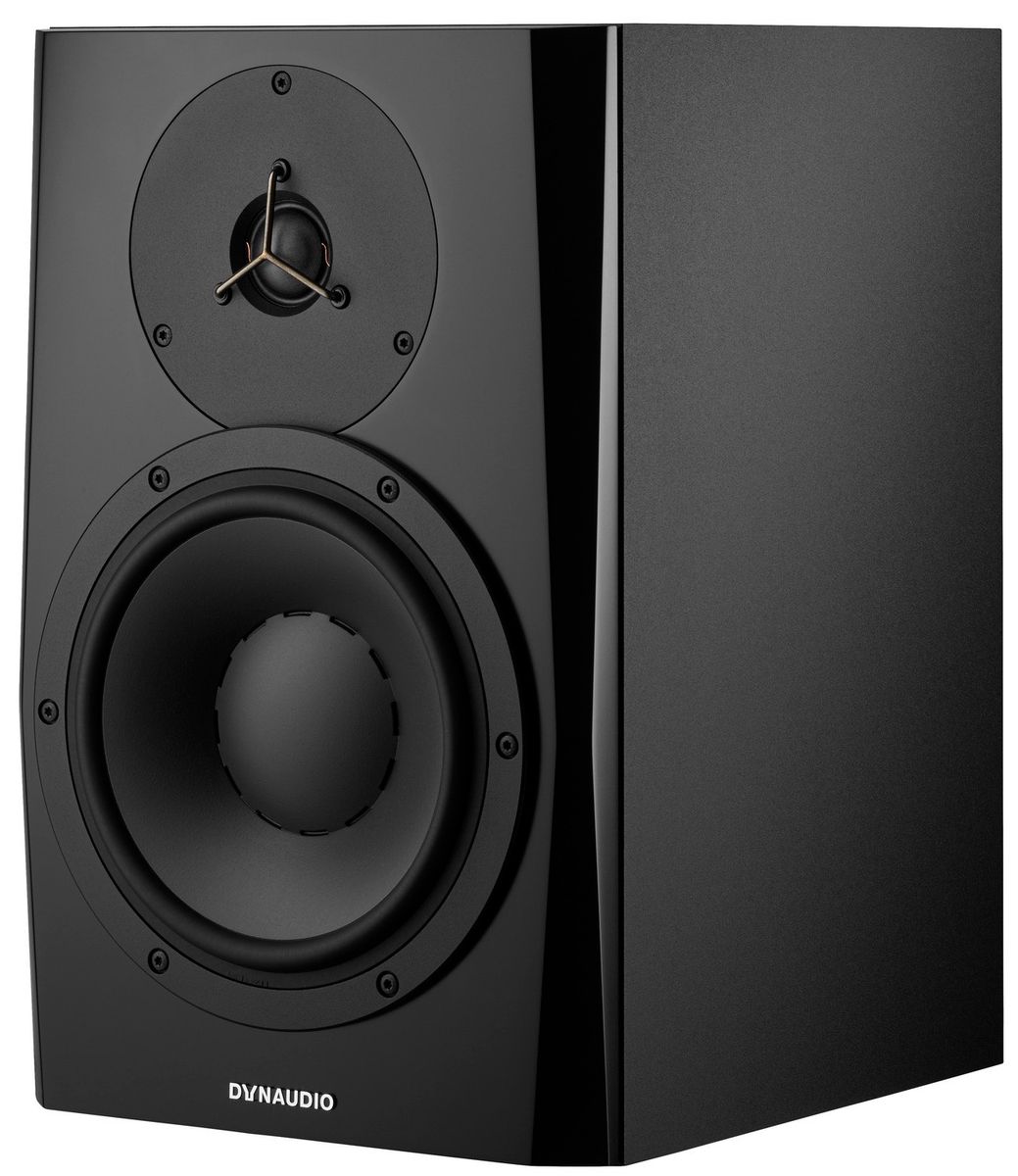

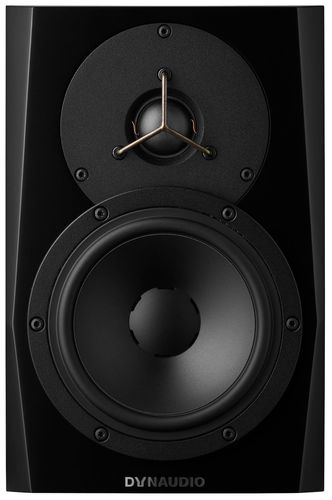

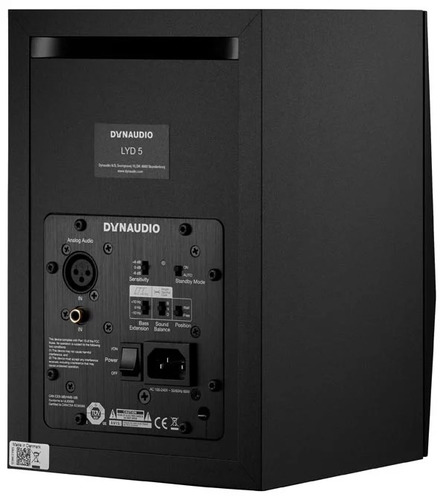

LYD 5
Compact nearfield personal monitors for incredible precision in smaller spaces – and even at low volumes. The truth, the whole truth and nothing but the truth. Get the unvarnished truth and deliver your mixes exactly as the artist intended.
LYD 5, with its low-volume precision, is the ideal complement for any small studio set-up. It uses the same lightweight aluminium voice-coils in its handmade 5in MSP drive-units as our high-end hi-fi speakers, and pairs them with cutting-edge Class-D amplification as well as a 24-bit/96kHz signal path with advanced DSP.
Specifications
Status: Current
Segment: Pro
Series: LYD
Type: Nearfield Monitor

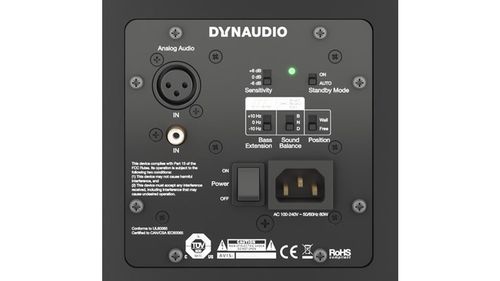

Analog inputs: XLR, RCA
Maximum SPL (1m, pair): 106
Amplifier Power Woofer (W): 50
Amplifier Power Tweeter (W): 50
AC Power Input: 100-240V 50/60Hz
Max Stand-by Power Consumption (W): 0.5
Max Power Consumption (W): 100
Lower Cutoff (Hz @85 dB +/- 3 dB): 60
Upper Cutoff (kHz @ 85dB +/- 3 dB): 21
Box Principle: Rear-loaded bass reflex
Crossover: 2-way DSP-based
Crossover Frequency (Hz): 5200 Hz
Tweeter: 1.1in soft dome
Midrange/Woofer: 5in MSP
Weight kg: 5.7
Weight lbs: 12.6
Width mm: 170
Height mm: 260
Depth mm: 211
Width inches: 6 6/8Height inches: 10 2/8
Depth inches: 8 2/8
Speakers per packaged box: 1
Finishes: Black Satin, White Satin
