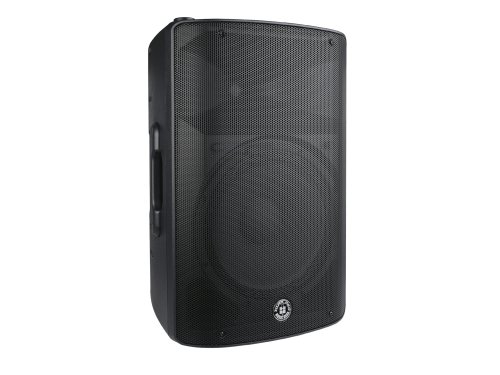

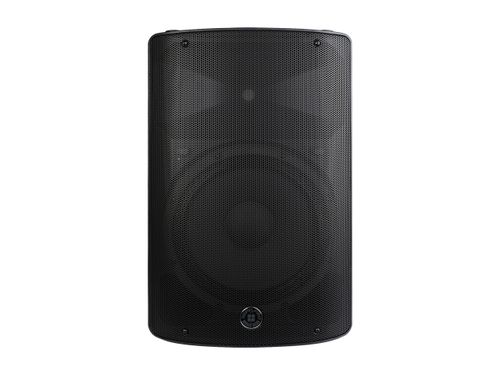

Model: X15A MKII
System Type: 2-Way Active Ported Loudspeaker
Power System: Class D SMPS (Bi-AMP, LF 350W/RMS + HF 50W/RMS), 1600W Peak
Continuous Power: (350W / LF + 50W / HF)
Program Power: (700W / LF + 100W / HF)
Transducers: 15" (381mm) Woofer - 1" (25mm) Neodymium compression driver, 1" (25mm)
Crossover Frequency: 2.2kHz
Max SPL at 1m: 125dB (peak), 93dB (continuous) (dB-SPL @ 1m)
Frequency Response: 60Hz - 20kHz (-3dB)
Frequency Range: 55Hz - 20kHz (-10dB)
Horn Coverage H° x V°: 90° horizontal x 60° vertical (nominal)
Equalization: Contour Switch, emphasizes low and high frequencies by +3 dB

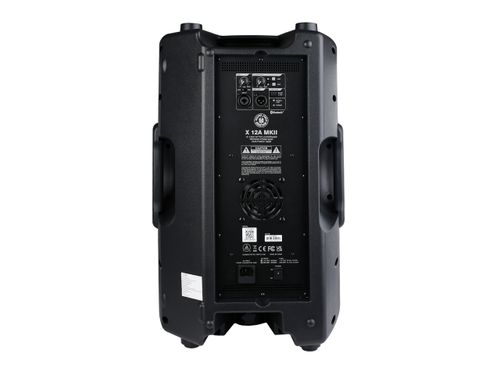

Connector: XLR balanced input (Line / Mic); XLR mix output (Link); IEC power cable input
Bluetooth Stereo: Stereo L/R-VOL-Pair-Link Switch
Controls: Volume Control knob / Power Switch / Contour Switch / Line & Mic toggle Switch
Indicators: Power ON with Green LED, Clip Limiter with Red LED; Bluetooth Pair/Link LED
Power: 110V-120V / 50-60Hz or 220V-240V / 50-60Hz
Electronic Protections: Thermal / Overload / Analog limiter / Compressor
Enclosure Construction: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
Mounting: Standard 36mm pole socket, wedge monitor
Dimensions (HxWxD): 627 x 386 x 371 mm (24.7" x 15.2" x 14.6")
Net Weight: 31.53 lb. / 14.3 kg
