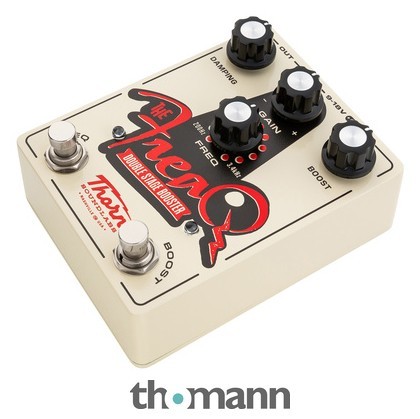

THORN The Freaq - Double Stage Booster
The Thorn The FreaQ – Double Stage Booster is a highly flexible booster pedal designed to provide an extra punch and tonal control for your guitar.
With its intuitive controls—Damping, Gain, Boost, and Freq—this pedal allows you to dial in everything from subtle boosts to powerful, stage-ready tones.
The Freq control lets you fine-tune a targeted frequency range of additional boost or cut, offering even more tonal versatility.
The Thorn The FreaQ – Double Stage Booster is a must-have tool for guitarists who want to push their sound to new levels, whether boosting volume,
adding tonal clarity, or fine-tuning the frequency response.
flexible Double Stage Booster
variable frequency sweep range boost: 300 Hz – 3.4 kHz
linear boost up to +20dB
perfect for pairing with pedals or with any (tube) amplifier
all analog

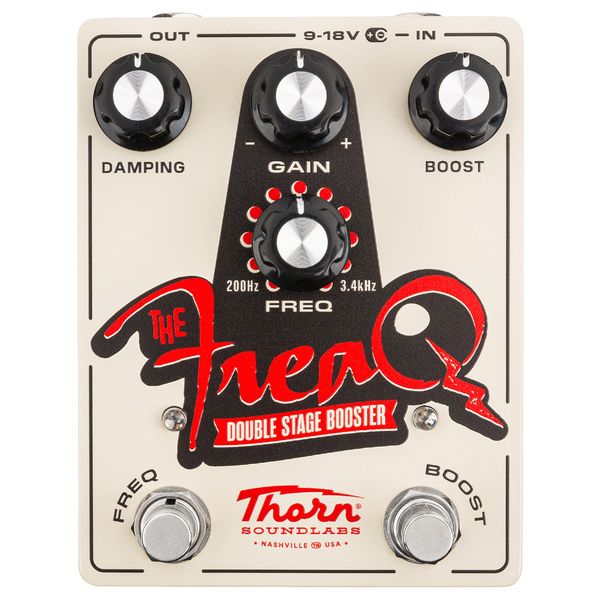

controls: Damping – Gain – Boost – Freq
the Damping control adjusts how much low-frequency sound reaches the distortion circuit
footswitches: Effects Bypass & Boost – Freq
hardwire true bypass
status LED: Freq & Boost

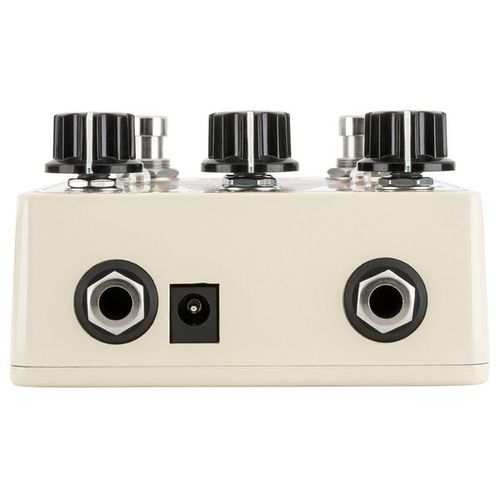

input: 1/4” (6.35 mm) mono TS jack
output: 1/4” (6.35 mm) mono TS jack
input impedance = 470 kOhm
output impedance = 2.2 kOhm
power supply: 9 – 18V DC – NOTE: do not connect more than 18V DC
current draw: max. 30 mA
power supply connector: 5.5 x 2.1 mm barrel plug, center negative
power supply not included
no battery operation possible
dimensions: Width x Depth x Height: 3.70" x 4.72" x 1.50" (94 x 120 x 38 mm)
dimensions with switches, jacks & knobs: 3.70" x 4.86" x 2.09" (94 x 123.5 x 53 mm)
weight: 0.82 lbs. (370 g)
