סט אלקטרוניקה לבס Sadowsky SAC ELE ONBOARD BP4F

4061688143836
135-BP4F

תוספות ושדרוגים


מלאי
מחיר: 746 ₪
משלוח לנקודת חלוקה גודל חבילה מקסימלי 40/30/30 ס"מ 8 ק"ג: 20 ₪
זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 4 ימי עסקים
  • קניה מאובטחת ושירות לקוחות מעולה
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

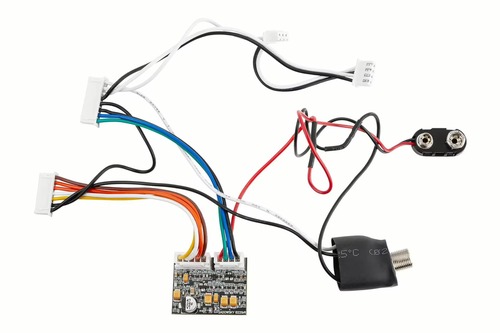

Sadowsky Onboard Bass Preamp (4-Knob System, no control plate)

The Sadowsky Onboard Bass Preamp (4-Knob System) is a completely prewired system offering the same controls and the same legendary active preamp as all Sadowsky basses. This preamp is designed for installation on most basses with a 4-Knob Layout. On newer active electric basses with a 4-knob layout with a side jack and a battery compartment, usually no modification is required. On passive basses, the only required modification is to move the output jack to the side of the instrument and to make room for a battery. The controls are: Volume – Pan (Balance) – VTC (Vintage Tone Control) – Treble / Bass. The treble and bass controls are boost only - flat response is with the controls at their complete counterclockwise position. The VTC control is passive, the maximum setting is a flat EQ. The further you turn the control down, the more the high end in the signal will be attenuated. This system is not compatible with active pickups requiring anything else than a 250K or 500K volume or balance pot.

Prewired onboard bass preamp for electric basses with 4-knob layout, side jack and battery compartment
active preamp for passive pickups

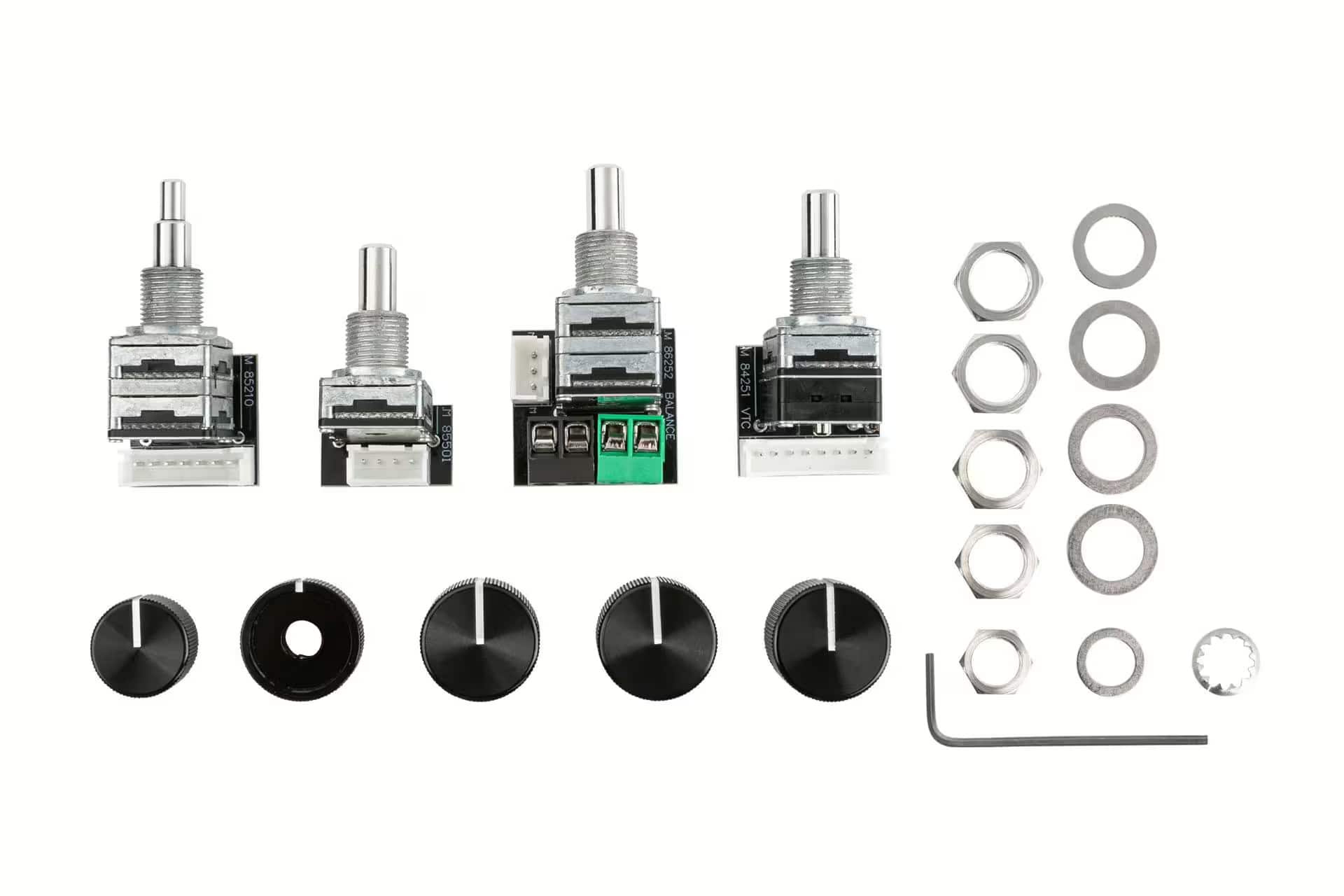

4 knob layout with controls for Master Volume / Balance / Vintage Tone Control (P/P) / Treble and Bass (stacked)
push/pull function at VTC knob for preamp bypass
longer cables between the potentiometers to facilitate installation in non-Sadowsky basses
screw terminals on the balance potentiometer for pickup hot & ground wires for solderless installation
without Control Plate
frequency response 5 Hz - 50 kHz
Bass control offers +18 dB boost at 40 Hz
Treble control offers +18 dB boost at 4 kHz
total harmonic distortion (THD) 0.18% at 1 kHz
power supply via one 9V battery
current draw 9 mA
up to 870 hours battery life
input impedance 1 Mohm
output impedance 1 kohm
Note: Defects or damage caused by improper installation or the use of unsuitable accessories and tools are excluded from the warranty. This includes excessively hot solder joints, incorrect solder and resulting damage to the electronics and solder joints.
Note: When installing a Sadowsky Onboard Preamp on a MetroExpress bass without a control plate (Modern, Verdine White and M/J models), the holes in the body for the potentiometers must be enlarged. This is because the factory installed potentiometers on the MetroExpress have a smaller diameter than the potentiometers on the Sadowsky Onboard Preamp.
