TOUR BABY
For players looking for the ultimate lightweight 2-channel tone machine to take anywhere, the Orange Tour Baby is the perfect solution. This 100W solid-state “micro amp”
is tour-worthy and incredibly dependable in a variety of playing situations. Weighing in at just over 3 kg it can easily power the most heavyweight cabs on the market.
The refined clean channel features bass and treble EQ controls, as well as a studio-grade VCA compressor, offering pristine clean tones with either active or passive pickups.
In addition, a formidable dirty channel delivers grit, crunch and classic saturation—all with a classic valve-like edge-of-breakup tone that’s impossible to find in any other
solid-state unit. The inclusion of a second footswitchable volume control provides a stage-friendly boost option, while 3 band EQ controls and a presence knob deliver a world
of tweakable tones to explore.

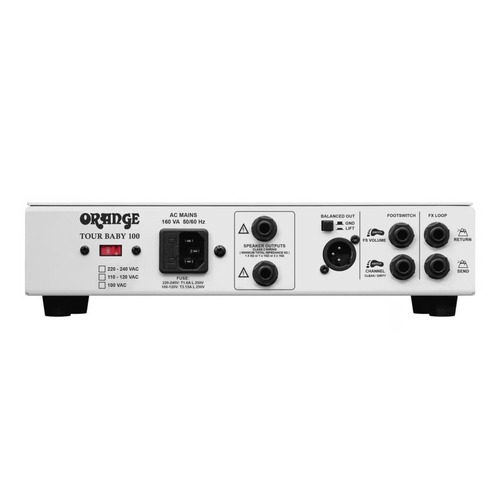

The Tour Baby is equally comfortable on a festival stage or in any studio environment. With a bevy of output options including a balanced out without Cab-Sim as well as dual speaker outputs,
it’s designed to offer increased flexibility despite its ultra-compact form factor.
FEATURES: 100 WATT GUITAR HEADFEATURES: 100 WATT GUITAR HEAD
CLASS A/B SOLID STATE POWER STAGE
SINGLE-ENDED JFET PREAMP STAGE
CLEAN AND DIRTY CHANNEL (FOOT SWITCHABLE)
SECOND FOOT SWITCHABLE VOLUME ON DIRTY CHANNEL
BUFFERED FX LOOP
BUILT IN VCA COMPRESSOR ON CLEAN CHANNEL
CARRY GIG BAG
RACK MOUNTABLE

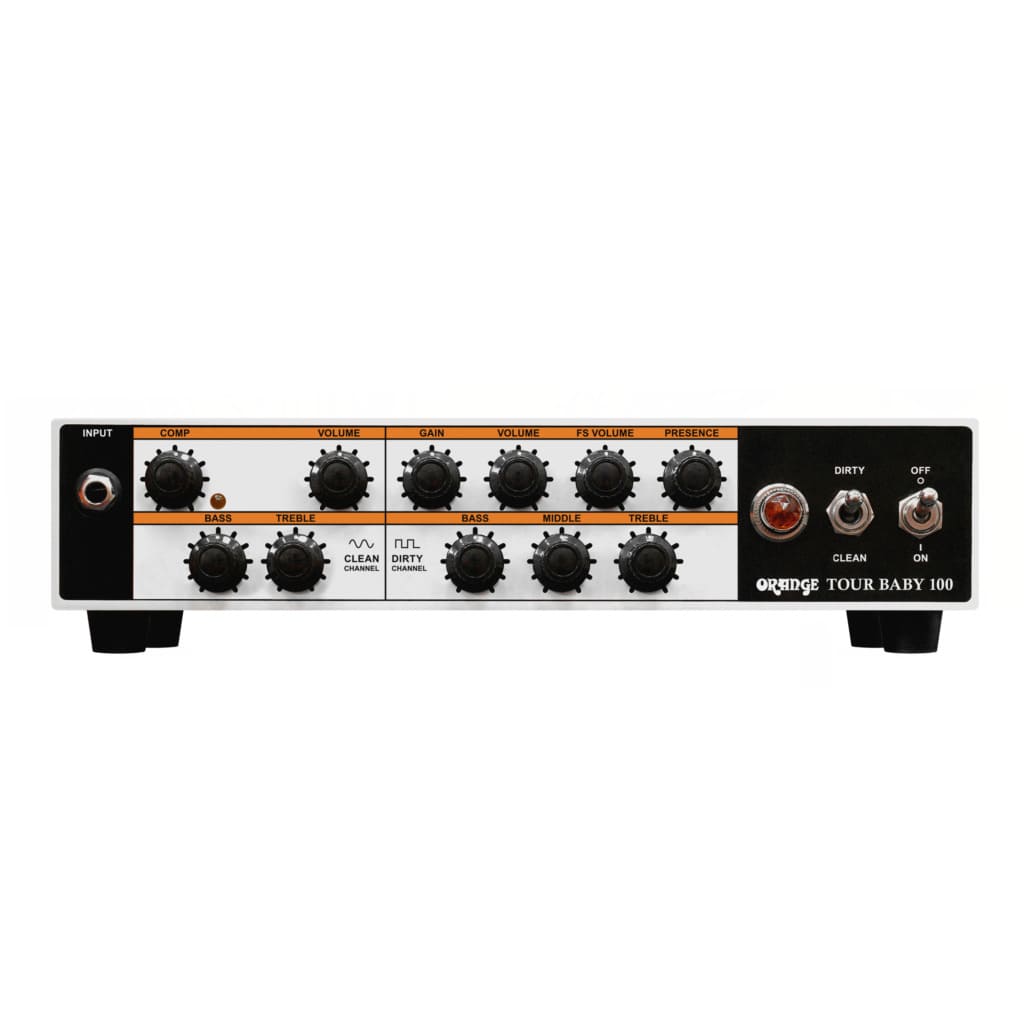

CONTROLS:CLEAN CHANNEL CONTROLS:
VOLUME, COMPRESSION, BASS AND TREBLE.
VCA COMPRESSOR WITH INDICATOR LED
DIRTY CHANNEL CONTROLS:
GAIN, VOLUME, FS VOLUME, PRESENCE, BASS, MIDDLE, TREBLE AND TIGHT SWITCH
CHANNEL SELECTOR SWITCH
POWER SWITCH
OUTPUT POWER: 100 WATTS RMS | 100W INTO 8 OHMS OR 70W INTO 16 OHMS
UNBOXED DIMENSIONS (W X H X D): 300 X 80 X 195 MM / 11.81 X 3.15 X 7.68”
UNBOXED WEIGHT: 3.59 KG (7.91 LBS)
