ABOUT THE ATTENUATOR.
All great tube amps sound best when they’re being pushed. But that often means angry looks from bandmembers and sound engineers. Those days are over.

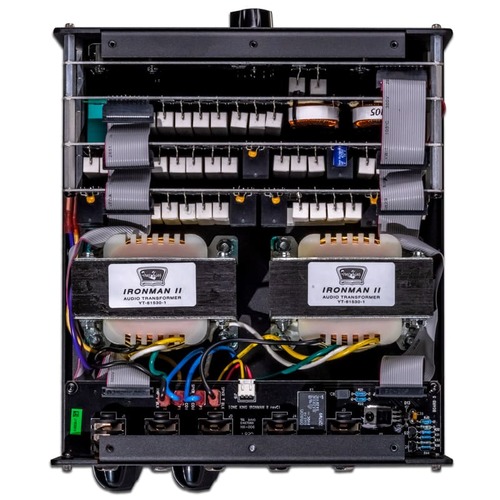

The Ironman II allows you to take your ground-shaking rig to whisper levels. Unlike other tube amp attenuators, the Ironman II’s reactive load technology and
transformer-coupled power division circuitry does it while retaining all of the detail, warmth, and response of your pure tone. Today is the day to experience the Ironman II for yourself.
PRESENCE SWITCH.
The Presence switch provides subtle control of brightness and compression. It allows you to tailor the response to match your acoustic environment and to
correct for an overly bright amplifier. Three settings are provided: 0db (brightest setting), -3db, and -6db (darkest setting).
DI XLR AND ¼” LINE-LEVEL OUTPUTS.
The Ironman II’s Line-Out and DI outputs provide a line-level signal that can be used to drive another amplifier, mixing board, recording interface, or any other line-level input.
To sweeten the pot, the DI out features an analog speaker cabinet simulation (with switches to select between speaker center or edge micing and ground-lift) that compares
head-on with some of the most intricate computer-based IRs out there.
IMPEDANCE MATCHING.
Another unique feature of the Ironman II is its dual impedance controls – one for the amplifier input, and one for the speaker output. These controls allow you to
match your speaker to your amplifier, regardless of the amp’s output impedance.
USE AS A DUMMY LOAD.
Want to record or practice silently? No problem. The Ironman II can easily be used as a dummy load with no speakers attached. This is ideal for using the cab-emulated out,
your favorite IRs, plugging in a set of headphones for big amp vibe that won’t wake the neighbors.
TECHNICAL DETAILS

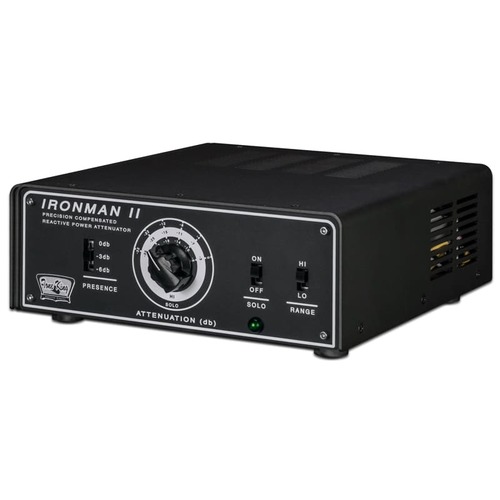

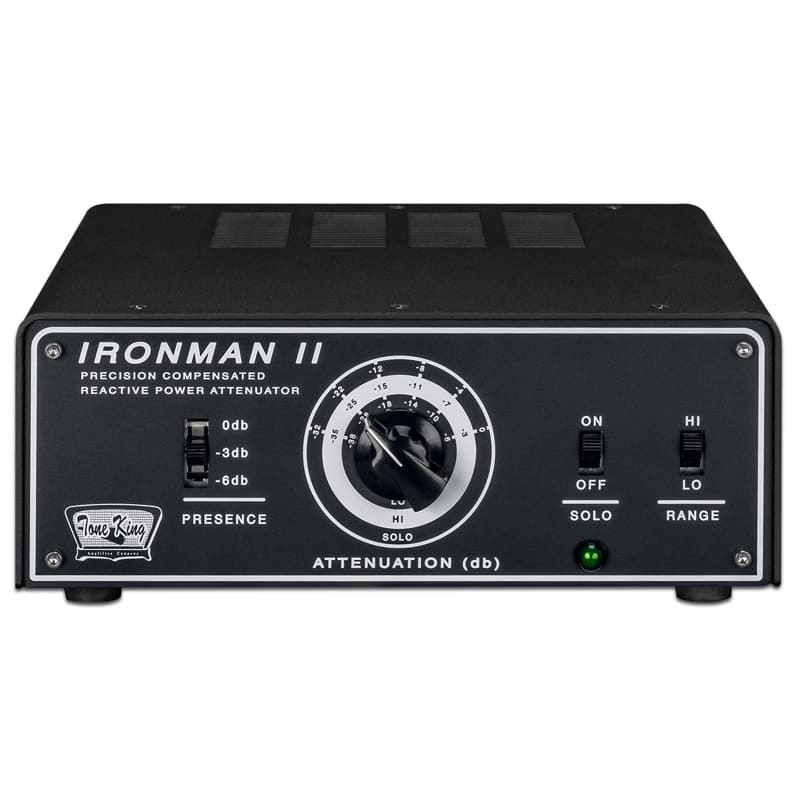

Front Panel:
Attenuation Settings:
SOLO: 0dB, -4dB, -8dB, -12dB, -22dB and-32dB
HI: -3dB, -7dB, -11dB, -15dB, -25dB, -35dB
LO: -6dB, -10dB, -14dB, -18dB, -28dB, -38dB
Presence: 0dB, -3dB or -6dB
Switches: Hi/Lo Switch and Solo

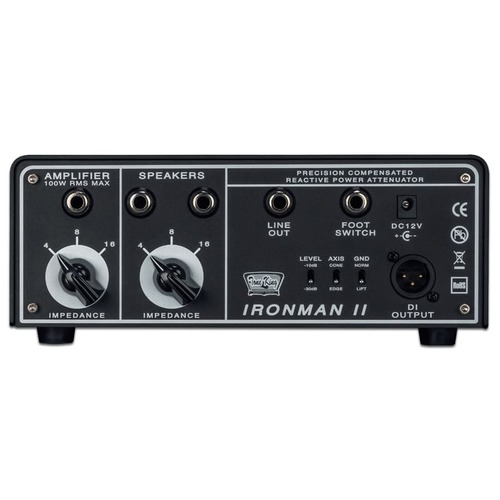

Rear Panel:
Amplifier Impedance Switch: 4, 8 or 16 ohms
Speaker Impedance Switch: 4, 8 or 16 ohms
XLR DI Output with switches for: GND, AXIS and LEVEL
1/4″ Line Out
Foot Switch jack – foot switch is included
12V DC Jack – use the included power supply
Weight: 15 lbs.
Dimension: 10.25″ (deep)x 9.5″ (wide) x 3.75″ (high)
