B-11 PRO allows you to customize GIF boot-up animations! Follow these steps to set it up:
1. Download the “NUX B-11 PRO GIF Customizer” software from the Support section below and install it.
2. Use the included USB cable to connect the B-11 PRO RX (Receiver) to your computer. Launch the GIF Customizer software and follow the prompts to upload and save your GIF to the device.
3. Disconnect the USB cable and restart the RX. Navigate to Menu > Display Settings > Boot-up Animation and select “User Image”. Now your B-11 PRO will greet you with your favorite animation every time you turn it on!
PRO Series Anti-Interference Technology
– 2.4 GHz wireless with true diversity antennas
– Stable coexistence in environments with heavy wireless traffic
– Intelligent frequency hopping avoids interference automatically
– 79 channels with 1 MHz bandwidth for enhanced wireless compatibility
– 6 stability levels (3.9 ms to 10.2 ms); increasing stability levels can improve wireless stability
Features
– For violin and viola; connect to amplifiers or mixers for rehearsal, recording, or live performance
– Cardioid condenser microphone, specially tuned for violin performance
– Provides two clips for violin and viola
– Built-in 10 professional preset EQs and 2 customizable EQs
– High-sensitivity tuner for quick and accurate tuning
– Send/Return loop for easy connection with guitar pedals or multi-effects
– The receiver provides magnetic charging for fast and secure transmitter recharging
– Transmitter battery life up to 6.5 hours；Receiver battery life up to 11 hours
– Built-in DI function for easy connection to mixers and recording equipment
– Customizable startup screen UI for personal style

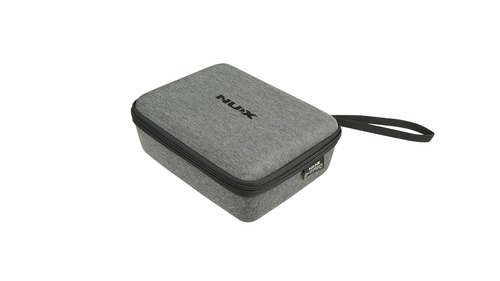

– Includes a carry case
– 0 to +12 dB boost
– 2.4″ high-res color screen
– 24-bit / 48 kHz audio quality
– Up to 165 ft wireless range (line-of-sight)
– 20 Hz–20 kHz frequency response
– 112 dB dynamic range
Specifications
Microphone
– Microphone Type: Condenser
– Polar Pattern: Cardioid
– Microphone Sensitivity: -46 dB
Transmitter / Receiver
– Operating Frequency Band: 2.4 GHz ISM (2.4 GHz–2.4835 GHz)
– Transmission Power: < 10 mW E.I.R.P
– Operating Range: Up to 50 m (165 ft)
– Latency: 3.9ms (Low Latency) / 6.4 ms (Default) / 10.2 ms (Stable)
– Audio Quality: 24-bit / 48 kHz
– Frequency Response: 20 Hz–20 kHz
– Maximum Audio Signal Output: 6.4 dBV (SEND / OUTPUT)
– THD+Noise: Less than 0.01%@1 kHz
– Output Dynamic Range: 112 dBA (SEND / OUTPUT)
– Battery Life Time: Transmitter (up to 6.5 hours), Receiver (up to 11 hours)
– Battery Capacity: Transmitter (3.7 V / 450 mAh), Receiver (3.7 V / 3000 mAh)
– Power: DC 9V, 1 A min., negative-tip power supply (Receiver)
– Transmitter Dimensions (excluding microphone): 90 (L) x 115 (W) x 55 (H) mm
– Transmitter Weight (excluding microphone): Approx. 33 g
– Receiver Dimensions: 90 (L) x 115 (W) x 55 (H) mm
– Receiver Weight: Approx. 468 g
